Precast Concrete Project Portfolio

Dive into our portfolio and see how our precast solutions bring visions to life, setting new standards in construction.

Contact Us
A bridge extends over calm water with nearby modern buildings under a clear blue sky. Bare trees line the riverbank.

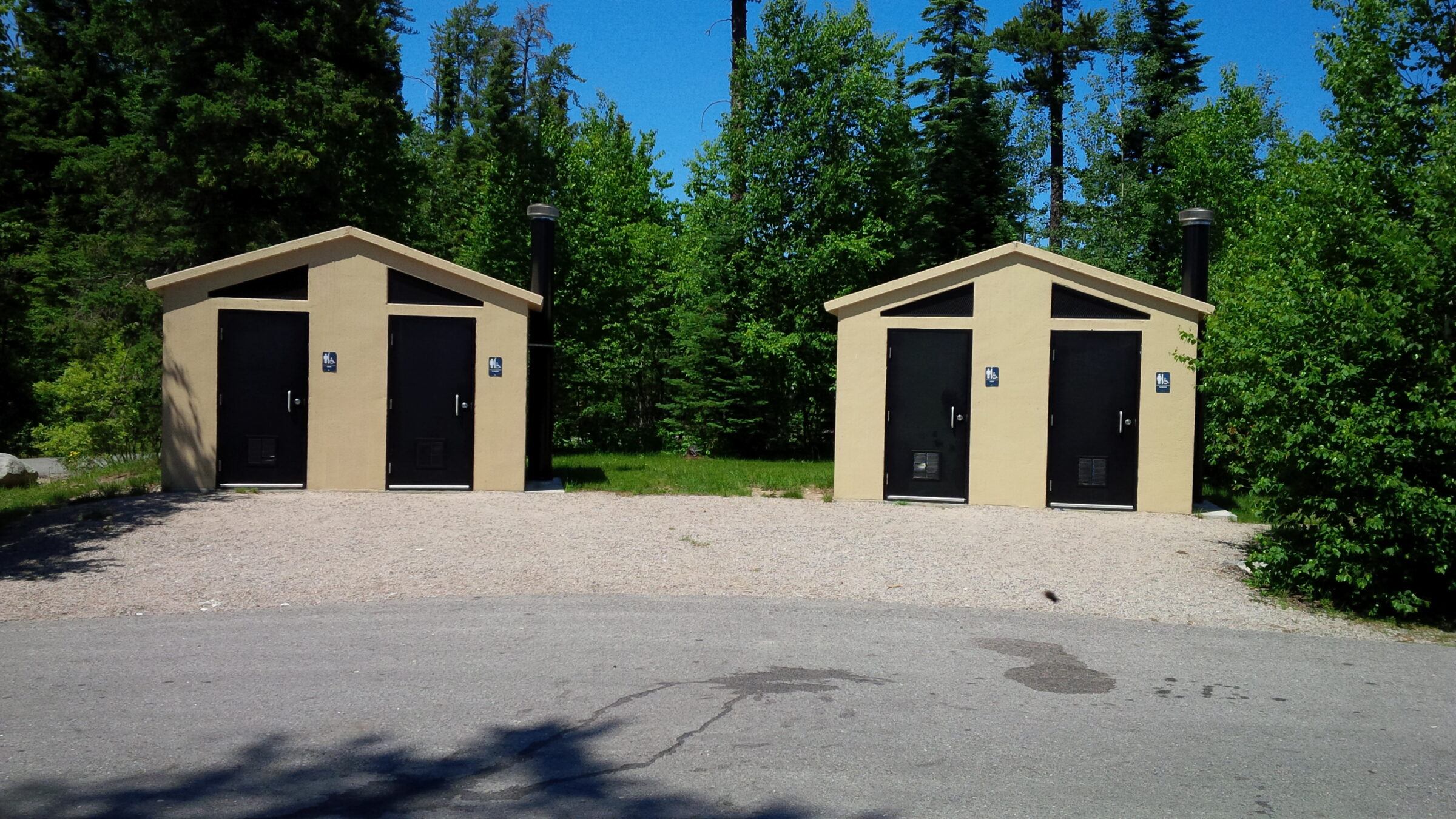

Two small restroom buildings with black doors amidst lush green trees, situated on gravel in a park setting under a clear blue sky.

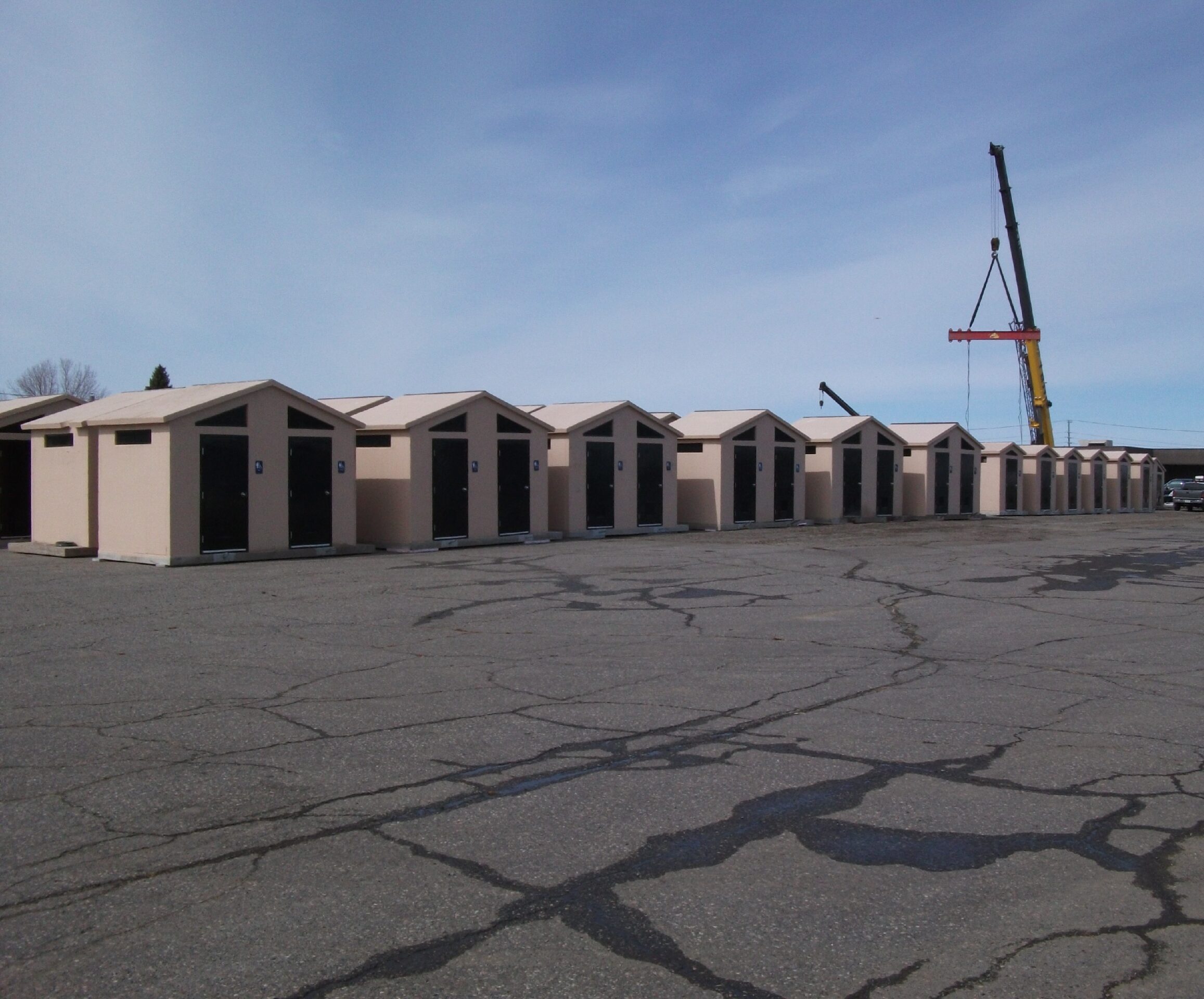

Several small, beige utility sheds line an asphalt lot under a clear sky, with a crane visible in the background. No people present.
A beige restroom building with two doors sits among green trees under clear blue skies, surrounded by gravel and pavement.

Precast Concrete Washrooms

MTO Northwest Region

In 2011 Miller Precast Ltd. fabricated 50 precast concrete washrooms for the Ministry of Transportation, Northwest Region. The total contract was for 44 double concrete washrooms and 6 single concrete washrooms. The washrooms are located at rest stops throughout Northwestern Ontario.

The washrooms were delivered complete with all fixtures ready for use. These washrooms are not only aesthetically pleasing but will last a lifetime.

A crane lifts a concrete structure outside an industrial building with a large garage door on a cloudy day. Two people are visible.

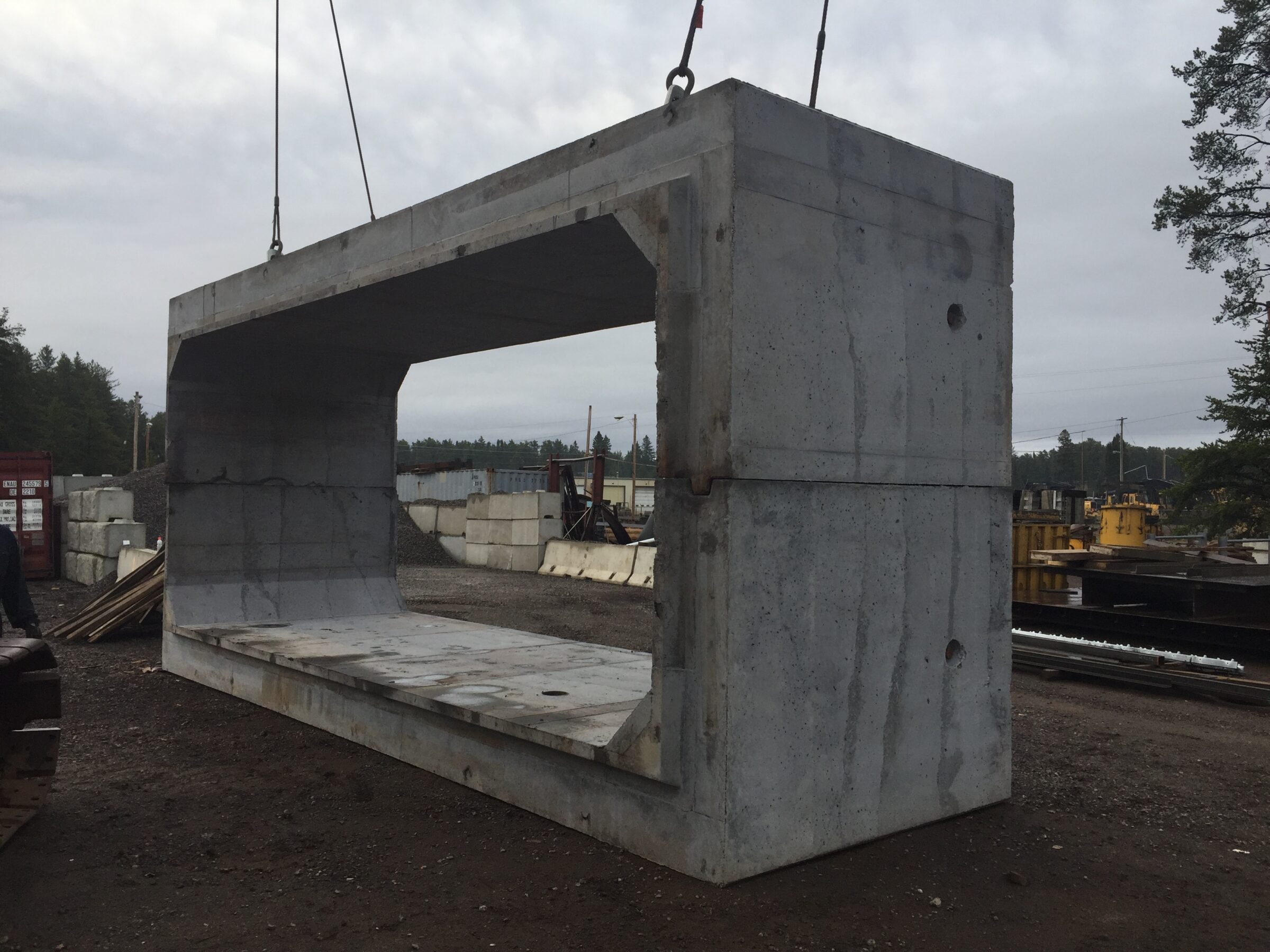

Large concrete structure being lifted by crane in industrial area with shipping containers and construction materials in the background, surrounded by trees.

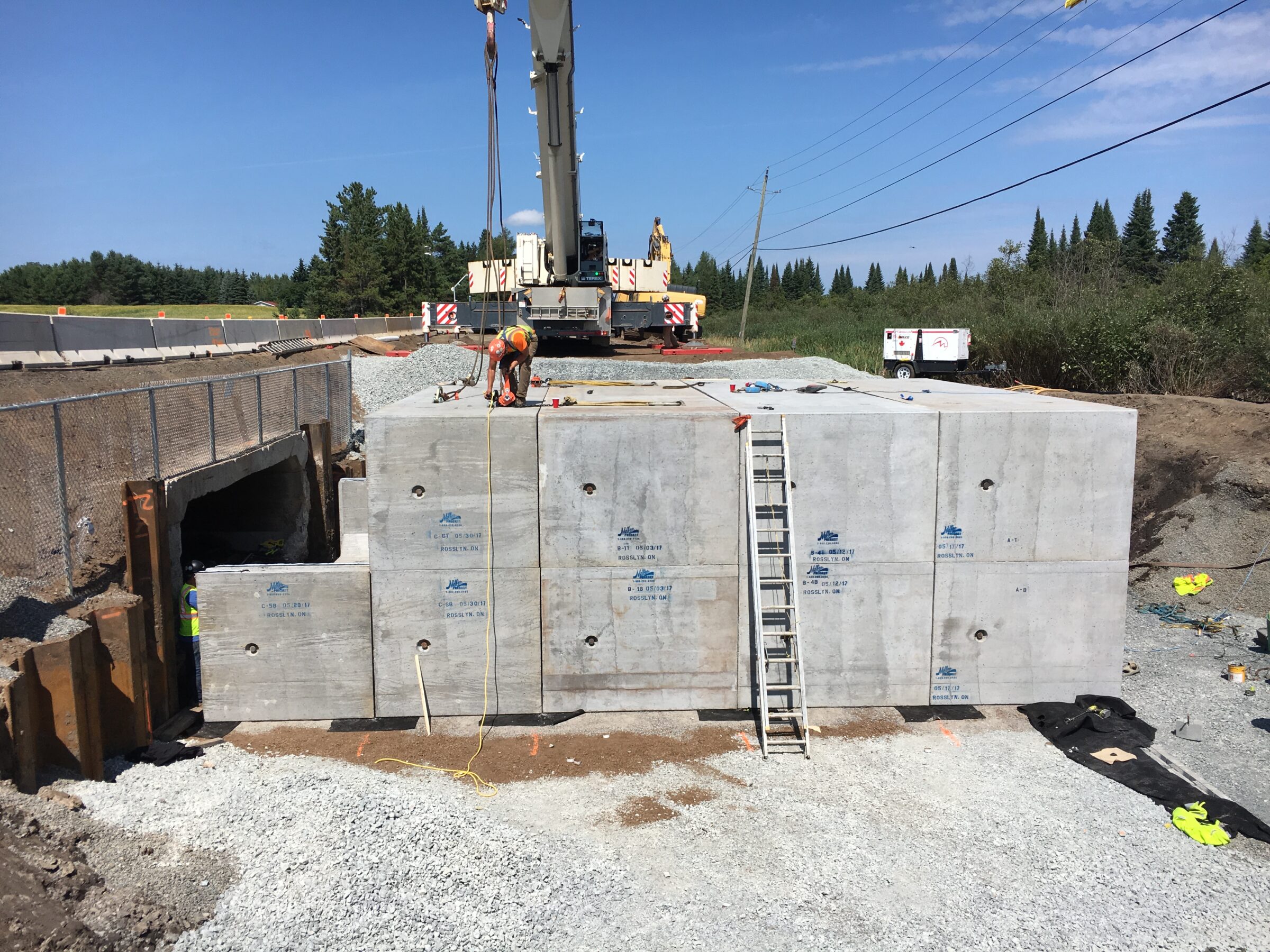

A person works on a large concrete structure at a construction site, surrounded by trees and equipment, under a clear blue sky.

Slate River Tributary Culvert

MTO 2016 – 6249

In 2017 Miller Precast Ltd. fabricated and delivered 27 linear meters of 7200 x 2700 precast concrete box culvert for a Ministry of Transportation Ontario project near Thunder Bay, ON.

Due to the significant span required the culverts were extremely heavy. A clamshell style design was used to reduce the weight to 66,000lbs per section.

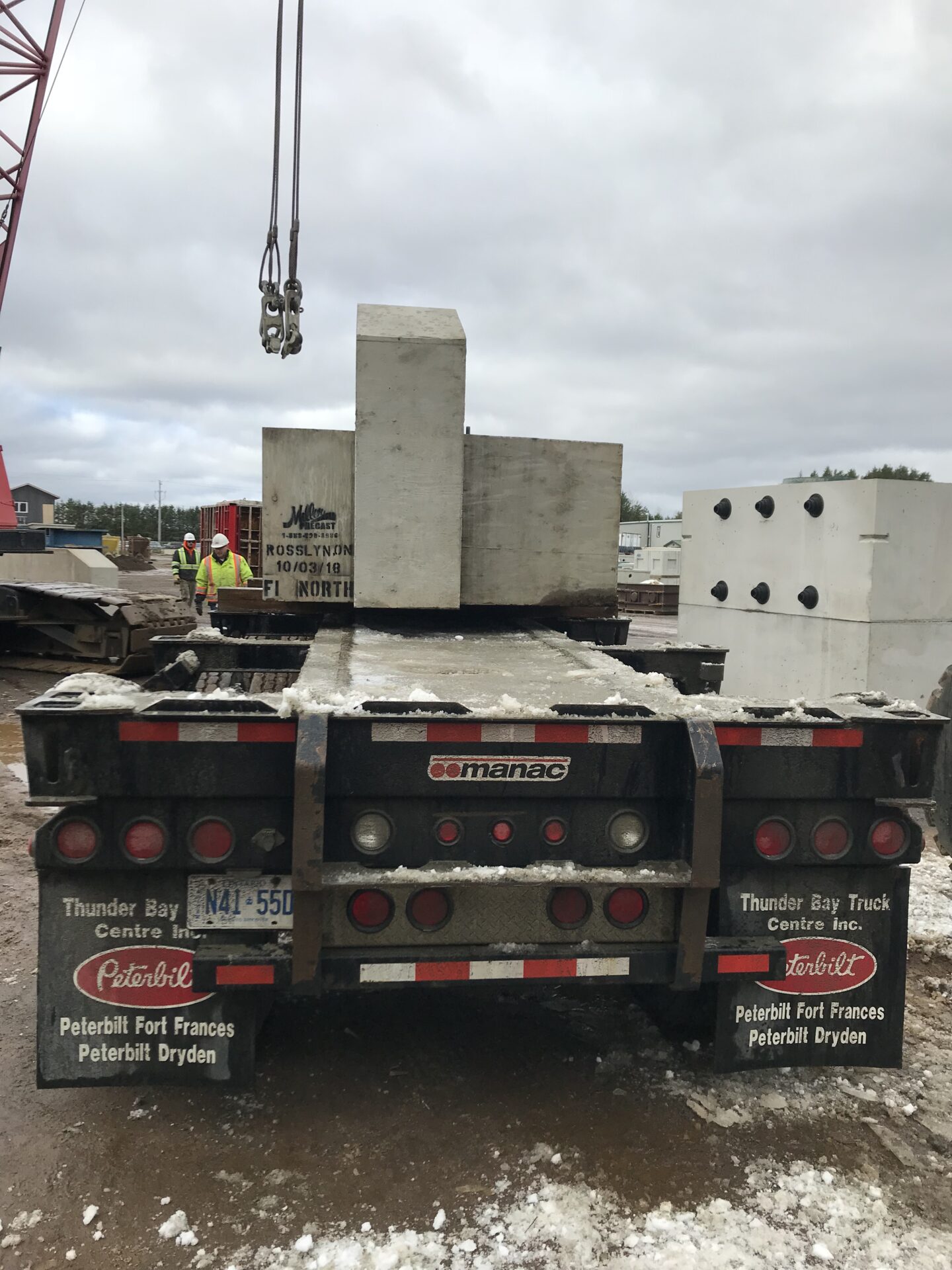

A flatbed truck with a concrete slab is at a construction site. Two people in safety vests are nearby. Cloudy sky.

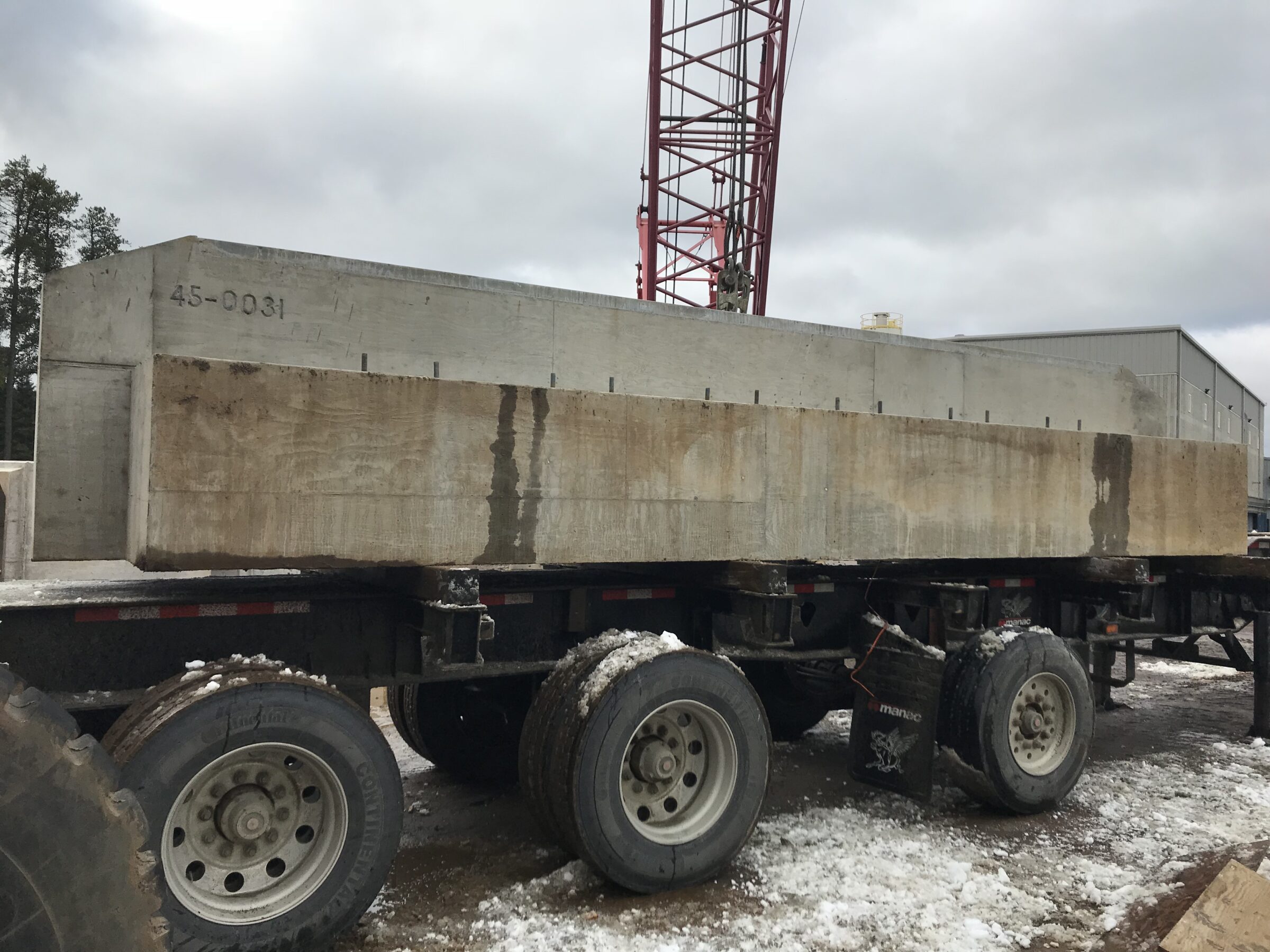

A large concrete block sits on a flatbed truck in a snowy construction site, with a crane visible in the background.
A construction site with two people working around large concrete slabs and a crane, surrounded by forested landscape on an overcast day.

Pinewood River Bridge #1

MTO 2018-6252

In late 2018 Miller Precast Ltd. fabricated two 8.2m long, 80,000lb bridge abutments for the Ministry of Transportation’s Pinewood River Bridge #1 project near Fort Frances, ON.

The bridge abutments included cast in anchor bolts for ease of installation on site as well as cast in galvanized armouring angle for impact protection during normal use. The abutments also included monolithic ballast/retaining wall so that there was no additional concrete to be cast on site, just place and carry on.

A truck with a crane lifts concrete pipes on a construction site. Two persons wearing safety vests are visible under a partly cloudy sky.

Balmoral Street Reconstruction

Thunder Bay

In 2016 Miller Precast Ltd. supplied over 1300 meters of 1200 and 1050 diameter concrete pipe and numerous 2100 and 1200 diameter manholes and catchbasins for the City of Thunder Bay’s Balmoral Street Reconstruction project.

Miller Precast Ltd. was able to deliver a constant supply of pipe to ensure a continuous installation. The project was undertaken to upgrade Balmoral Street from ditches to a storm sewer system.

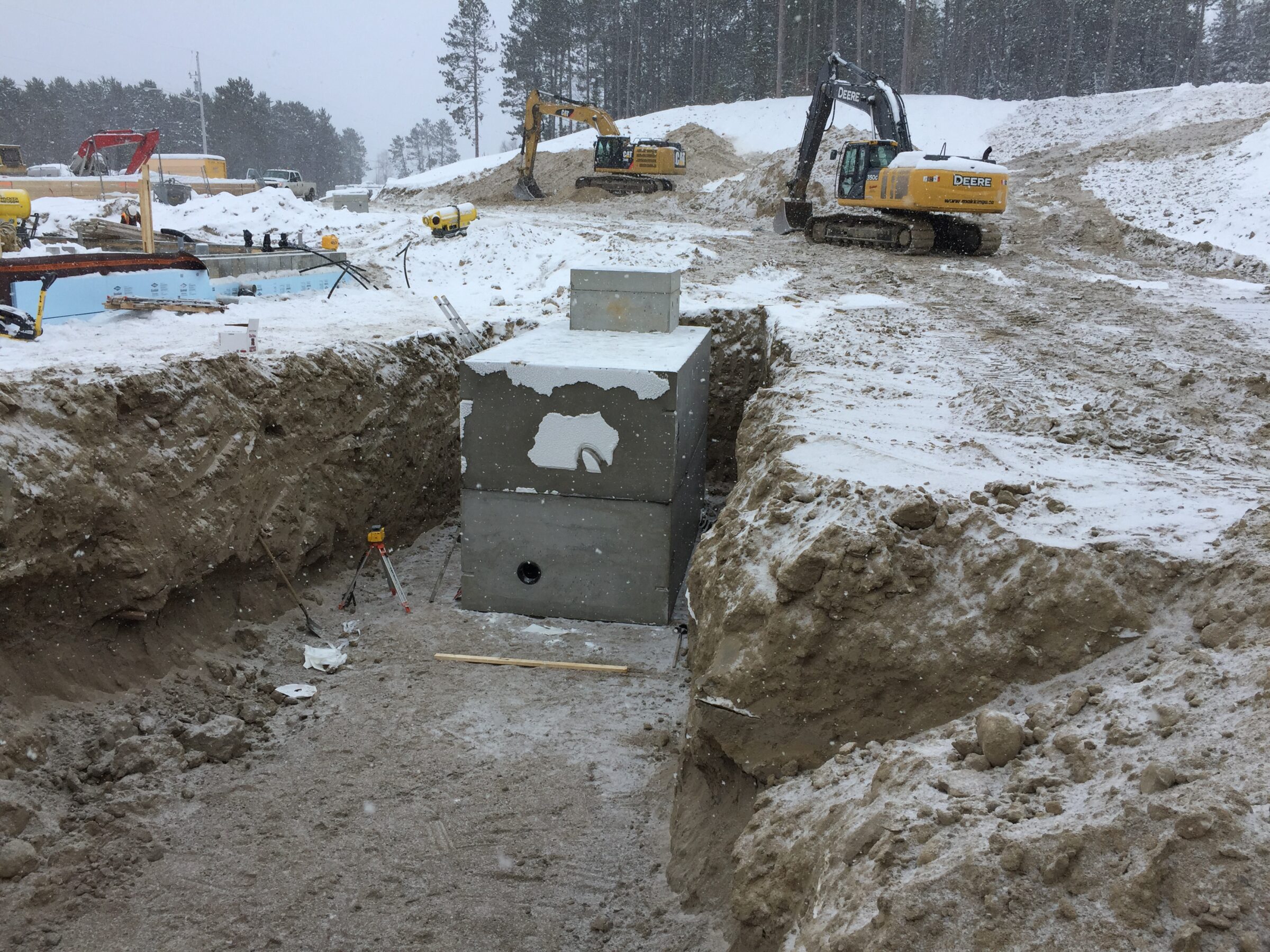

Construction site with heavy machinery working in snowy conditions. Excavator and equipment visible, no recognizable landmarks or buildings present.

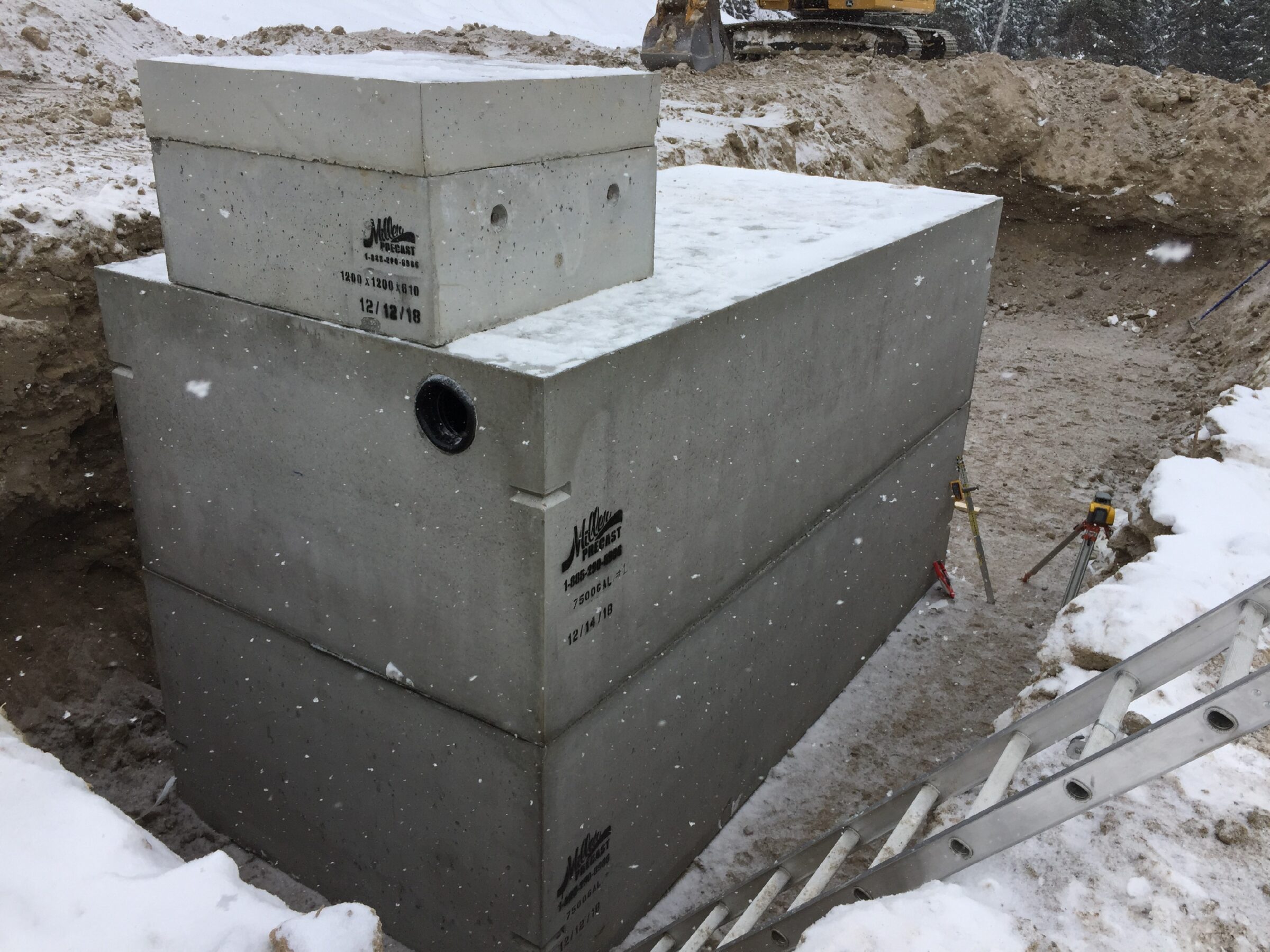

A large concrete septic tank is installed in a snowy construction site with a ladder and surveying equipment nearby.

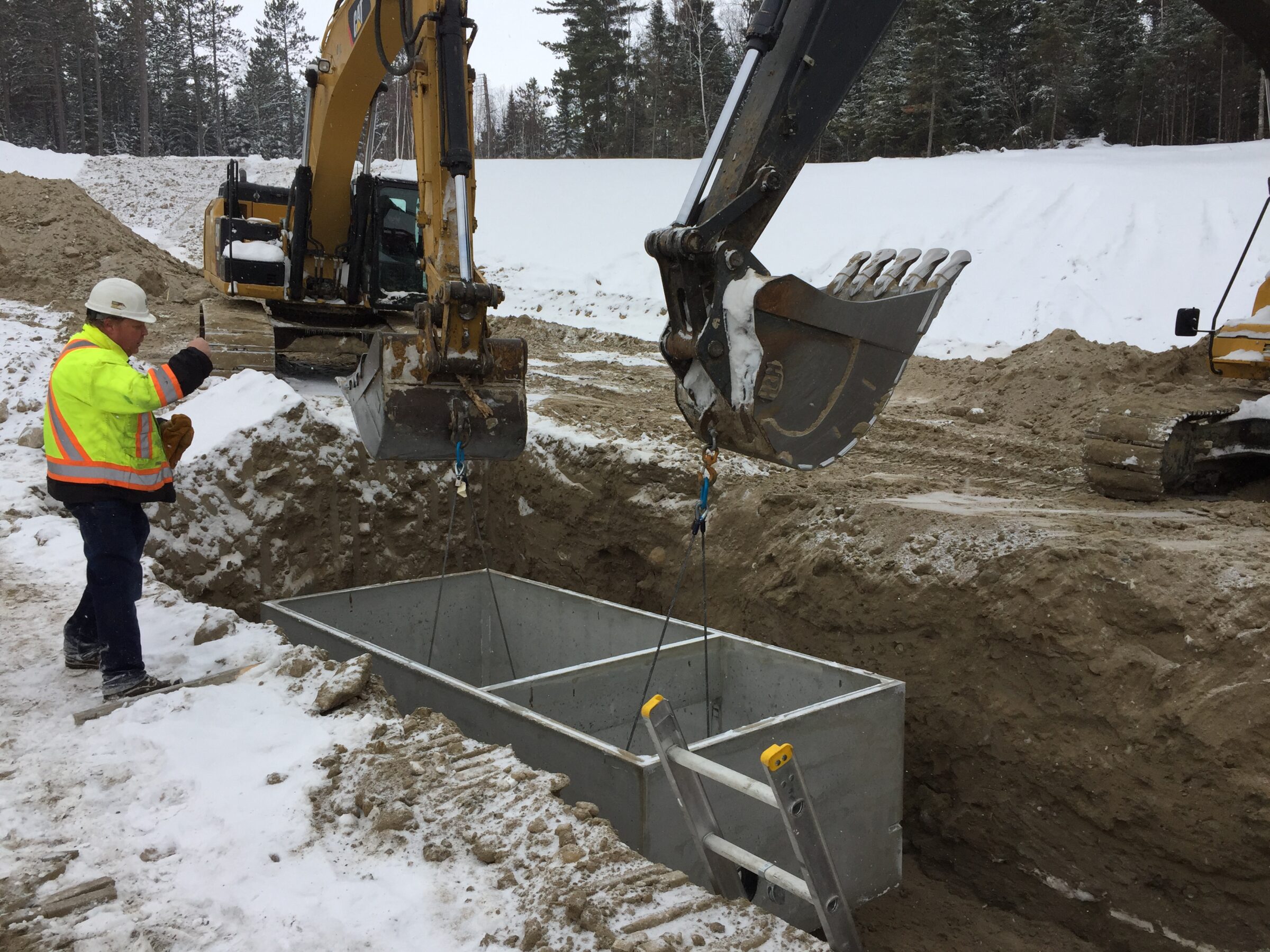

A person in a safety jacket observes an excavator lowering equipment into a snowy construction site surrounded by trees.

Kejick Bay Water Treatment Plant

Kejick Bay Island in Lac Seul First Nation

In early 2019 Miller Precast Ltd. fabricated and delivered two 34,000L precast concrete backwash tanks and a 4500L septic tank with a pump chamber for the Kejick Bay Water Treatment Plant project on Kejick Bay Island in Lac Seul First Nation.

The tanks were fabricated with custom openings to suit the project requirements as well as custom aluminum hatches and ladders to complete the system. The tanks were fabricated in late December in the climate controlled plant setting and shipped to the site and installed in mid-January, proving that precast is an effective and economical option not only during the summer but also in the winter months where cast in place concrete would be extremely difficult and costly.
